Worcester Boiler Error Codes Explained: Quick Checks And When To Call An Engineer

A Quick Summary

Worcester boiler error codes are your boiler’s way of stopping safely when it detects a fault with ignition, pressure, flow, or sensors. Common Worcester Bosch boiler codes like EA (ignition or flame signal), E9 (overheating), C6 (fan or flue fault), and 1017 (low system pressure) often point to issues with gas supply, water pressure, water flow, or internal components such as the heat exchanger.

Boiler Error Codes: What Are They?

When a code appears on a Worcester Bosch boiler, it usually means the boiler has spotted a condition it cannot run through safely. In other words, the boiler will stop to protect itself and your home.

Below are some of the most common Worcester boiler error codes, what they often point to, and what you can safely check. Codes vary by model, so use this as a practical guide and keep a note of the exact fault code shown.

What To Do First When Boiler Error Codes Appear

Check whether you still have hot water, or whether heating and hot water have both stopped. Note the code and any symbols. Check the pressure gauge. Many systems sit around 1 to 1.5 bar when cold. Try resetting the boiler once. If the code returns, avoid repeatedly pressing the reset button.

If you smell gas, treat it as a gas supply issue and seek emergency help. Do not troubleshoot.

EA: Flame Signal Or Ignition Problem

EA is a common Worcester Bosch boiler code linked to ignition or flame detection. The boiler has tried to light, but no flame detected, or the flame signal is not being confirmed. Common causes include gas supply problems, a faulty ignition electrode, issues with the flame sensor, or a blockage affecting flue gas.

Safe checks: confirm other gas appliances work, and look for obvious issues like a frozen condensate pipe in cold weather. If EA persists, it requires professional testing.

E9: Overheat Protection Tripped

E9 is typically an overheat lockout where a safety temperature limiter in the central heating flow has tripped. Poor water flow is a frequent cause, including a restricted heat exchanger, a struggling boiler pump, closed valves, or sludge.

Safe checks: confirm radiator valves are open and the system pressure is normal. Repeating E9 needs a Gas Safe registered engineer.

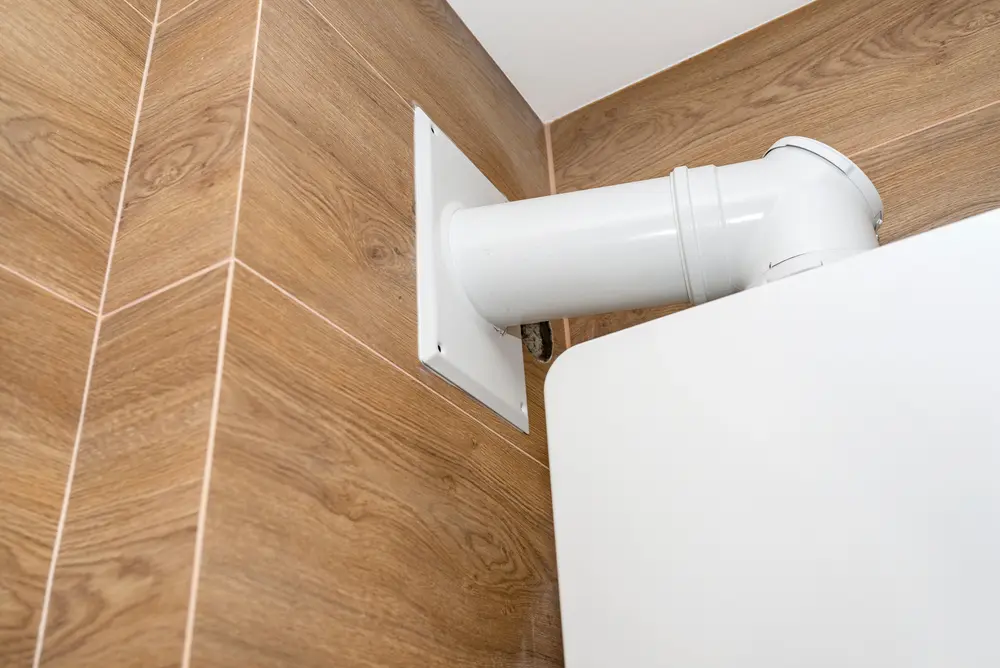

C6: Fan Or Flue Fault

C6 is generally a fan speed or fan operation fault and can relate to flue or fan performance. Because the fan manages combustion air and safe flue gas removal, this is not one to guess at.

Safe checks: a single reset may clear a one off. If C6 returns, switch the boiler off and contact a Gas Safe registered engineer.

1017: Low System Pressure

On many models, 1017 indicates system pressure is too low and the boiler may need topping up. Low water pressure can stop heating, and some boilers will limit operation until pressure is restored.

Safe checks: if you are confident, top up using the filling loop until the pressure gauge returns to the recommended range, then close the valve fully. Pressure that keeps dropping points to a leak, pressure relief valve issues, or expansion vessel problems.

1101: Thermostat Or Control Communication Issue

1101 is commonly linked to thermostat demand or communication. It can be as simple as flat batteries, lost pairing, or controls not set correctly, which means the boiler is not being told to run.

Safe checks: confirm the thermostat is switched on, schedules are set correctly, and batteries are fresh. If the issue repeats, wiring or receiver faults may need attention.

1021: Hot Water Sensor Fault

Some Worcester Bosch lists describe 1021 as a hot water temperature sensor issue, a type of sensor fault that can cause inconsistent hot water or lockouts.

Safe checks: note symptoms and the code. Sensor testing should be left to a professional due to wiring and short circuit risk.

When A Boiler Service Is The Smart Move

A one-off code can be a blip. Repeated boiler error codes are a sign the boiler needs attention.

An annual boiler service (available as a one-off or through our loyalty scheme) checks combustion, ignition, water flow, safety devices, and helps catch wear before it turns into a winter breakdown. A boiler serviced regularly also tends to run more efficiently, which can help with energy bills.

When Replacement Makes More Sense

If your Worcester Bosch boiler is older, out of warranty, and repeatedly throws a blocking error or recurring sensor faults, replacement may be the better long-term call. New boiler installation with KD Jones starts from £1900 including VAT, and we can talk you through 0% boiler finance if you want to spread the cost.

Speak To KD Jones

If you are seeing Worcester boiler error codes, we can diagnose the cause properly and advise whether a repair, service, or replacement is best.

📞 Call us on 01737 211376

🌐 Visit our contact page to request a quote online

📍 Based in Redhill, we cover homes across Surrey and the surrounding areas

FAQs

What should I do first when I see Worcester boiler error codes?

Note the exact code, check whether you still have hot water, and check the pressure gauge. One reset is fine, but repeated resets usually mean a fault that needs proper diagnosis.

What does EA mean on a Worcester Bosch boiler?

EA usually points to ignition or flame detection, where the boiler cannot confirm a flame signal. Gas supply, ignition electrode, flame sensor, or flue gas issues can all be involved.

What does E9 mean on a Worcester Bosch boiler?

E9 is typically an overheat lockout where a safety temperature limiter has tripped. Poor water flow, pump problems, or heat exchanger restrictions are common causes.

What does C6 mean on a Bosch boiler?

C6 commonly relates to a fan or flue issue, usually a fan speed fault. Because it affects combustion air and flue gas removal, it needs a Gas Safe engineer.

What does 1017 mean on a Worcester boiler?

1017 often indicates low system pressure and may require topping up. If pressure drops again after topping up, a leak or component issue is likely.

What does 1101 mean on a Worcester boiler?

1101 is commonly linked to thermostat or control communication problems, such as flat batteries, lost pairing, or a control fault.

Can I keep pressing the reset button to clear the code?

Pressing the reset button once can clear a one-off lockout. Repeated resets can hide the real problem and may increase the risk of damage if the boiler keeps locking out.

Why does my boiler show error codes more often in winter?

Winter increases demand on the heating system. Weak components, marginal water flow, low pressure, and sensor issues tend to show up when the boiler is working harder.

Does a boiler service help prevent fault codes?

Yes, servicing helps spot early wear and checks key safety and performance areas, which reduces the chance of common lockouts becoming repeat issues.

When is it time to replace instead of repair?

Repeated blocking errors, rising repair frequency, and an older boiler out of warranty are common signs. KD Jones installs new boilers from £1900 inc VAT, and 0% finance is available to spread the cost.
